cold room and clean room

Rope Wire with Loop & Suspension Lock is a heavy-duty steel suspension cable designed for cold room installations such as ceiling panels, evaporators, lighting, ducts, or shelving supports. It comes pre-formed with looped ends and a locking mechanism for secure, quick installation. Supports approx. 220–300 kg safe working load, Suitable for 4.0–6.0 mm wire diameter, Allows firm holding + easy adjustment, Built for corrosion resistance in low-temperature environments, High-strength galvanized/stainless steel wire, Pre-crimped loops for secure anchoring, Quick installation with lock system, Designed for cold storage & freezer rooms, Resistant to moisture, rust, and temperature stress, Suspended evaporator units, Ceiling panel reinforcement, Hanging lighting systems, Cable tray or pipe suspension, Insulated structure support,

Camlock PUF Panels These are insulated sandwich panels with a camlock joint system for easy assembly, commonly used in cold rooms, clean rooms, and insulated enclosures. HIPS Natural Material High Impact Polystyrene (HIPS) is a tough, durable plastic used in applications where impact resistance is important. “Natural” usually refers to its uncolored or base form. Use of HIPS Natural in Camlock PUF Panels: Inner/Outer Layer Cladding: HIPS sheets are often used as the facing material on one or both sides of the PUF (Polyurethane Foam) core. Hygienic Surfaces: Especially in food storage or clean room panels, HIPS provides a smooth, non-porous, and easy-to-clean surface. Impact Resistance: It offers good resistance to physical damage, making the panels durable in harsh environments. Thermal Compatibility: Works well with PUF in terms of thermal expansion and bonding. Advantages: Lightweight and cost-effective. Hygienic and chemically resistant.

Aluminium T-profile, commonly referred to as Aluminium T-section or T-bar. This specific profile is often used in PUF panel installations and cold room constructions. Uses of Aluminium T-Profile in PUF Panels: 1. Joint Covering:Used to cover the joints between two PUF panels, especially in wall-to-wall or wall-to-ceiling connections. 2. Reinforcement:Provides structural strength and support along panel junctions or edges. 3. Aesthetic Finish:Offers a clean, neat, and professional finish by hiding visible panel gaps. 4. Moisture Barrier:Helps in sealing the joints to prevent moisture or air ingress. Material Advantages: Corrosion-resistant (Aluminium) Lightweight Durable Easy to install

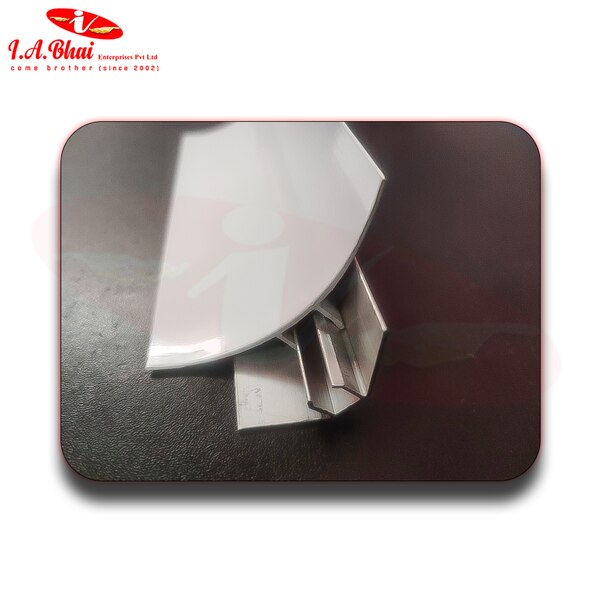

Aluminium PVC Coving, specifically designed for PUF panel applications such as in cold rooms, cleanrooms, and hygienic areas. Aluminium PVC coving is a curved or angled profile that’s used where walls meet floors or ceilings, providing a smooth, rounded transition. It combines: Aluminium base for strength and stability. PVC (polyvinyl chloride) cover or coating for hygiene, easy cleaning, and aesthetics. Applications in PUF Panels: 1. Hygienic Transition Joint:Installed at wall-to-floor or wall-to-ceiling junctions to avoid sharp 90° angles, reducing dust and microbial buildup. 2. Cleanroom & Cold Room Use:Commonly used in pharmaceutical, food processing, and cold storage areas that require easy-to-clean and seamless surfaces. 3. Structural Edge Finishing:Enhances the overall look and finish of the PUF panel installation while protecting corners from damage. 4. Compliance:Helps meet GMP and HACCP guidelines in clean areas. Common Sizes (can vary by manufacturer): Radius: 25mm or 50mm Length: Usually 8ft (2.44m) or customized

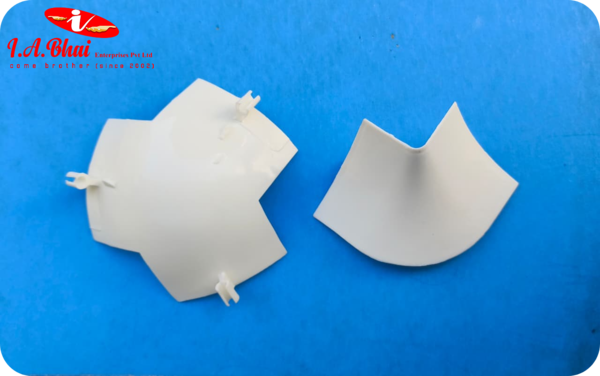

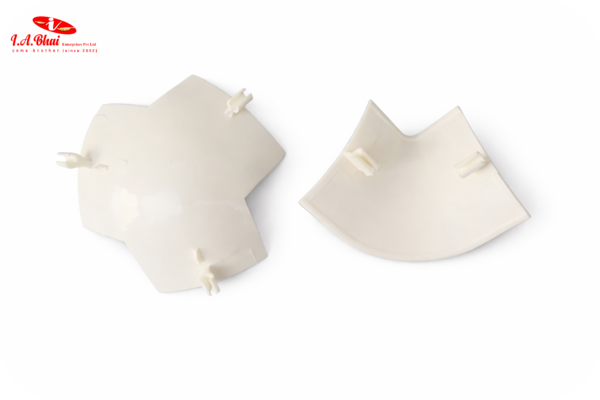

These are components commonly used in PUF (Polyurethane Foam) insulated panel systems, particularly for cold rooms, clean rooms, or modular enclosures. 2D Corner (Aluminium 2D Corner) Purpose: Used for joining two panels at a 90° corner (like wall-to-wall junctions). Material: Likely aluminum, offering strength, corrosion resistance, and a clean finish. Application: Internal or external vertical corner junctions. Often seen in cold room construction where walls meet. 3D Corner (Aluminium 3D Corner) Purpose: Used for 3-way corner joints, where three panels meet — such as wall-wall-ceiling or wall-wall-floor intersections. Material: Also typically aluminum for structural and hygienic benefits. Application: Used in room corners where all three planes meet. Ensures proper sealing and alignment in cold rooms or modular structures. Clean and professional finishing. Easy installation and alignment. Enhanced thermal insulation integrity (no thermal bridging). Prevents dust and moisture ingress at panel joints.

Our White UHMW PE Side Mould is specially designed for continuous line PUF panel production, ensuring superior performance, durability, and smooth operation across panel thicknesses from 30mm to 150mm. Manufactured from Ultra High Molecular Weight Polyethylene (UHMW PE), the side mould offers excellent wear resistance, low friction, and non-stick properties – making it ideal for demanding continuous line environments. Its high impact strength and dimensional stability ensure long service life while maintaining consistent panel dimensions and surface finish. Key Features: Suitable for PUF panel thickness: 30mm – 150mm Made from premium UHMW PE for maximum durability Low friction surface prevents sticking and ensures smooth panel release Excellent abrasion resistance for long-lasting performance Maintains dimensional accuracy for precise panel production Lightweight, easy to handle, and resistant to chemicals and moisture Applications: Continuous line production of insulated PUF panels Ideal for cold rooms, clean rooms, prefabricated structures, and industrial panel applications

We manufacture a wide range of high-quality aluminium profiles including profiles for cold room doors, aluminium T-sections, window profiles, and various custom-designed profiles. Our product line also includes durable and hygienic aluminium coving, ideal for clean wall-to-floor and wall-to-ceiling transitions. All profiles are engineered for strength, precision, and long-lasting performance, tailored to meet industrial and commercial needs. Powder coating is also available in multiple colors and grades, ensuring enhanced durability, corrosion resistance, and a premium finish

Camlock is fitted in puff panels like cold room, cold storage. It is used to join their walls. The material used in Camlock is the outer part of Camlock which is called bash. HIPS Natural are made from material. This material is strong and is also capable of bearing heavy load. The locking hook fitted inside which locks the Camlock is made of metal which makes the Camlock very strong. It works to join two parts due to which the Camlock gets locked very well and there is no fear of rusting in it

When using metal camlocks and GI (Galvanized Iron) sheets with PUF panels, you're typically working with a robust setup for insulated enclosures like cold rooms or industrial partitions 1. Metal Camlock for PUF Panels: Camlock System: A mechanical locking system used to connect PUF panels tightly. Usually made from galvanized steel or stainless steel for durability. Ensures airtight and thermally efficient joints between panels. Camlocks are embedded inside the panel during manufacturing. Advantages: Quick assembly/disassembly Strong interlocking — improves structural integrity Reduces thermal bridging and air leakage 2. GI (Galvanized Iron) Material for PUF Panels: GI Sheet Properties: Steel sheets coated with zinc to prevent rusting. Common thickness: 0.8 mm (varies based on application). Surface finish: Plain, pre-painted (PPGI), or plastisol coated. Where GI Is Used: Acts as the outer skin on both sides of the PUF panel. Used for both interior and exterior-facing panels. Suitable for industrial use, warehouses, and general-purpose insulation. PUF Panel Construction (with GI & Camlock) Common Applications: Cold storage rooms Cleanrooms Prefabricated buildings Telecom shelters Industrial warehouses

The Camlock PUF Panel with HIPS Super White material is commonly used in cold room and clean room applications. Here's a breakdown of its components and typical uses: 1. Camlock PUF Panel PUF stands for Polyurethane Foam, a high-insulation core material. Camlock refers to the interlocking mechanism that makes installation easy and ensures tight joints, improving thermal insulation and structural integrity. 2. HIPS Super White Material HIPS = High Impact Polystyrene Super White is a grade/color often used for hygienic and aesthetic purposes. It's used as a laminate or skin on the outer surface of the PUF panel. Uses of Camlock PUF Panel with HIPS Super White: Cold Rooms: For food storage, pharmaceuticals, etc. Clean Rooms: Used in industries like electronics, pharma, and labs where contamination control is critical. Modular Partitions: In controlled environments. Hospitals or Diagnostic Labs: Where hygiene is crucial. Why Use HIPS Super White? Smooth, glossy, and easy-to-clean surface. Resistant to moisture, chemicals, and impact. Provides a hygienic and aesthetically clean look. Non-toxic and safe for food-grade environments

Spacer (30mm to 150mm) for PUF Panel & Cold Room A PUF panel spacer is used to create a gap between panels in cold rooms, clean rooms, and insulated enclosures. These spacers help in structural support, air circulation, and thermal insulation while ensuring proper panel alignment. 1.Plastic (Nylon, PVC, Polypropylene): Lightweight, corrosion-resistant, and non-conductive. Aluminum or Stainless Steel: Provides high strength and durability for industrial applications. Rubber or EPDM: Offers vibration damping and thermal resistance. 2.Available in 30mm to 150mm thickness. Custom sizes available based on project requirements. 3. Functions & Benefits: Ensures proper panel alignment and spacing in cold storage construction. Reduces thermal bridging, improving insulation performance. Provides structural stability and load distribution. Allows for air circulation where required. 4.Cold Storage Rooms – Helps maintain insulation efficiency. Clean Rooms – Ensures precise panel spacing for controlled environments. PUF Panel Installations – Used in modular construction and prefabricated structures. HVAC & Refrigeration Systems – Supports ducting and thermal insulation. Installation & Availability: Can be bolted, clipped, or glued between panels. Available in round, rectangular, or custom shapes to suit different designs.

1. Mushroom nuts (fasteners) – Special nuts used in construction or shelving inside cold storage rooms. 2. Mushrooms and nuts (food storage) – Storing edible mushrooms and nuts in a cold room for preservation.
